1080P 3D视频转换器 UpDown Converter 2D转3D|视频转码器／转换器

10803D转换器
型号	2 × SDI/HDMI to SDI/HDMI
描述	2 ×SDI/HDMI to 2 ×SDI and 2 × HDMI Up/Down Converter with 3D Support
特征	l Side by Side, Top and Bottom, Line by Line 3D Mode and Frame Sequential Support l Two 2D Video Convert to One 3D Video Support l One 3D Video Convert to Two 2D Video Support l I ↔ P Conversion ( Built-In Interlacer and DeInterlacer. ) l 60fps ↔ 59.94fps Conversion l Frame Rate and Format Up/Down Conversion

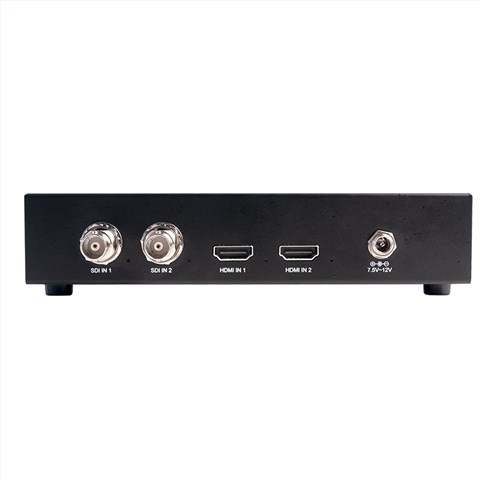

输入接口	Video l HDMI×2 ( 2D / 3D ) l SDI×2 ( 2D / 3D )

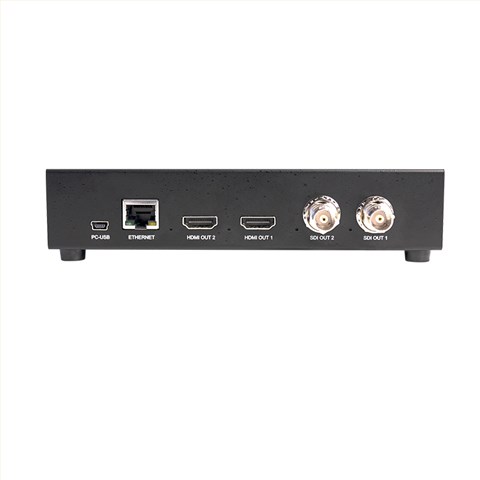

输出接口	Converted Video l HDMI×2 ( 2D / 3D ) l SDI×2 ( 2D / 3D )
输入格式	HDMI 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fpsSDI 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps
输出格式	HDMI ( Up/Down Converted ) 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fpsSDI ( Up/Down Converted ) 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps
音频输入	HDMI : 2 Channels, 24bit, 192KHz SDI : 2 Channels, 24bit, 192KHz
音频输出	HDMI : 2 Channels, 24bit, 192KHz SDI : 2 Channels, 24bit, 192KHz
Plug & Play 即插即用	?
电源	7.5V ~ 15V
Dimension 尺寸	L:171mm×W:103mm×H:35.1mm
