接口主机接口：PCIe×1 ( Gen1 )

型号	TC-542N1
最大输入	1920×1200p@60/50fps in → 1920×1200p@60/50fps out 1920×1080p@60/50fps in → 1920×1080p@60/50fps out
几何尺寸	107×101.3 ( mm )
录制模式	软压缩, 实时
主机接口	PCIe×1 ( Gen1 )

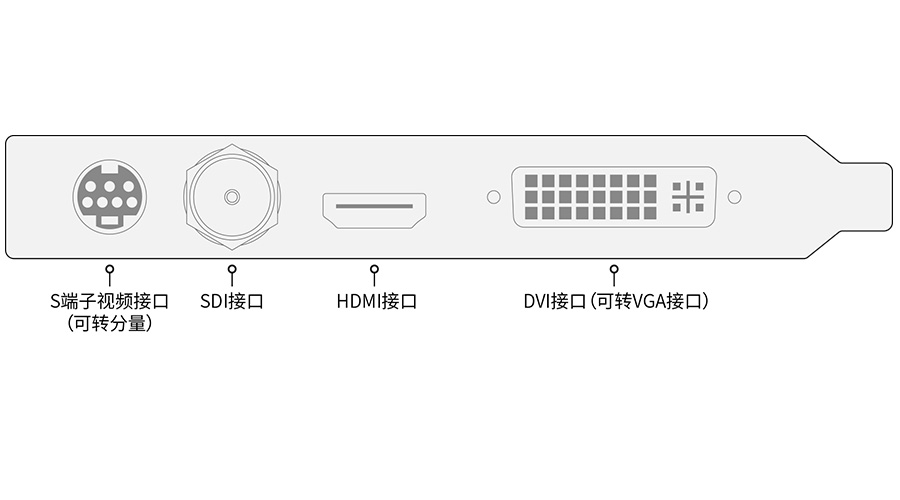

输入接口	1×HDMI, 1×DVI-I, 1×YPbPr, 1×SDI, 1×CVBS, 1×S-Video
输出图像格式	YV12, NV12, YUY2, RGB24, RGB32
视频输入	1920×1200p@60/50/30/25/24fps 1600×1200p@60/50fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps
压缩模式	H.264 ( Software Compression )
分辨率	1920×1200p@60/50/30/25/24fps 1600×1200p@60/50fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps
音频输入	1×SDI Embedded Audio, 1×HDMI Embedded Audio, A Pair of RCA Audio Connector ( Audio L/R Through Component Cable )
音频格式	Stereo / 16-bit / 32000 ~ 48000Hz
WatchDog	支持
一机多卡	支持
SDK	Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
操作系统支持	Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit )
