接口主机接口：PCIe×1 ( Gen2 )

规格

型号	TC-542N2 DVI
最大帧率	1920×1200p@60/50fps in → 1920×1200p@60/50fps out 1920×1080p@60/50fps in → 1920×1080p@60/50fps out
录制模式	软压，实时
几何尺寸	107.5×84.51 ( mm )
主机接口	PCIe×1 ( Gen2 )

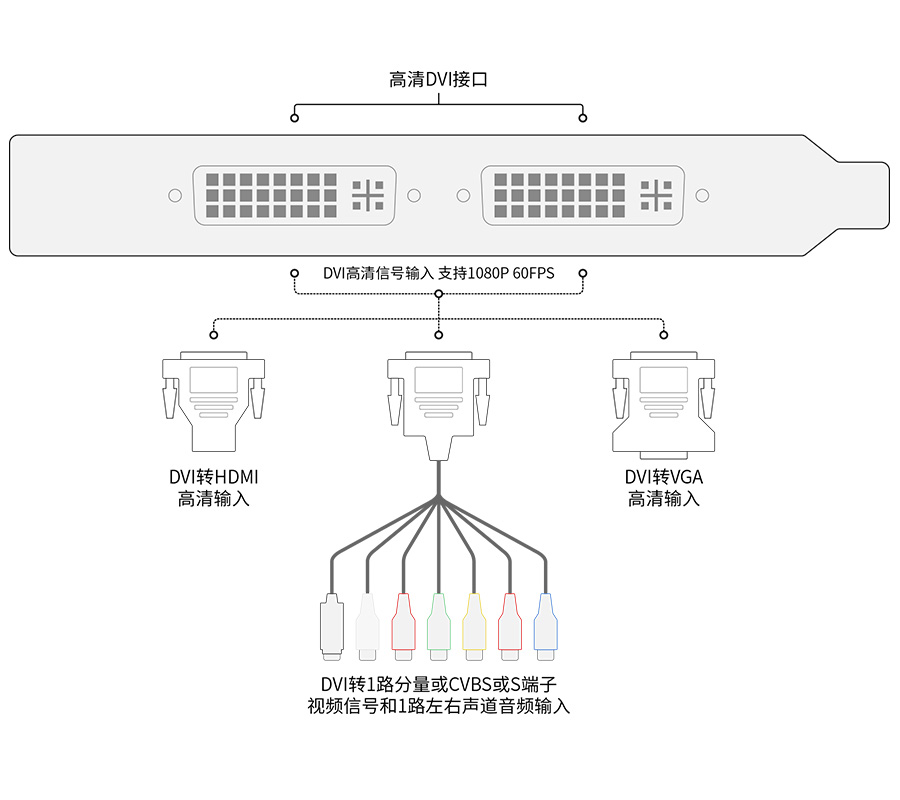

视频输入	2×DVI-I(2×HDMI, 2×CVBS, 2×S-Video   , 2×YPbPr, 2×VGA透过DVI转换头实现)
视频显示格式	YV12, NV12, YUY2, RGB24, RGB32
视频裸数据分辨率	1920×1200p@60/50/30/25/24fps 1600×1200p@60/50fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps
录像格式	H.264   High Profile
分辨率	1920×1200p@60/50/30/25/24fps 1600×1200p@60/50fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps
音频输入接口	2×HDMI Embedded Audio, Two Pair of RCA Audio Connector
音频采样格式	Stereo   / 16-bit / 32000 ~ 48000Hz
SDK	Support   API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
操作系统支持	Windows 7 / Windows 8 /   Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit )
