接口主机接口：PCIe×1 ( Gen1 )

几何尺寸	104.91×68.9 ( mm )
最大输入	1920×1080p@60/50fps in → 1920×1080p@30/25fps out
录制模式	硬压缩，实时
主机接口	PCIe×1 ( Gen1 )

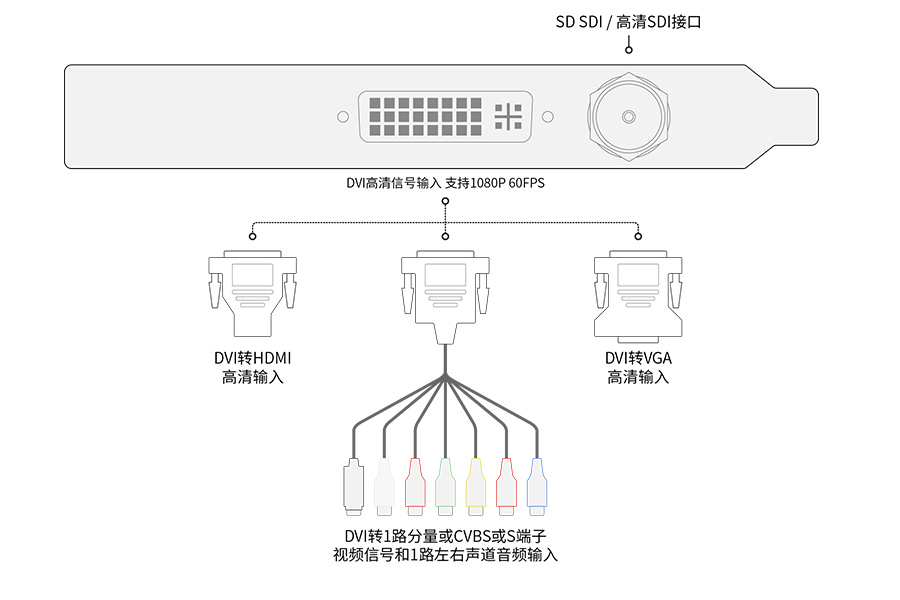

视频输入	1×Y/PbPr, 1×CVBS, 1×S-Video,   1×SDI, 1×HDMI, 1×DVI-I
输入视频支持	1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps
视频显示格式	YV12, NV12, YUY2, RGB24, RGB32
录制视频格式	H.264 ( 硬压缩   )
分辨率	1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps
音频输入支持	1×HDMI Embedded Audio, 1×SDI Embedded Audio,   A Pair of RCA Audio Connector ( Audio L/R Through Component Cable )
音频格式支持	Stereo / 16-bit / 32000 ~   48000Hz
SDK	Support API : DirectShow,   V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
操作系统支持	Windows 7 / Windows 8 /   Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit )
