接口主机接口PCIe×1 ( Gen2)

规格

型号	TC-5A0N2-L  HDMI
最大帧率	1920×1080p@60/50fps in → 1920×1080p@30/25fps out
几何尺寸	144.75×68.9 ( mm )
录像模式	硬压缩，实时
主机接口	PCIe×1 ( Gen2 )

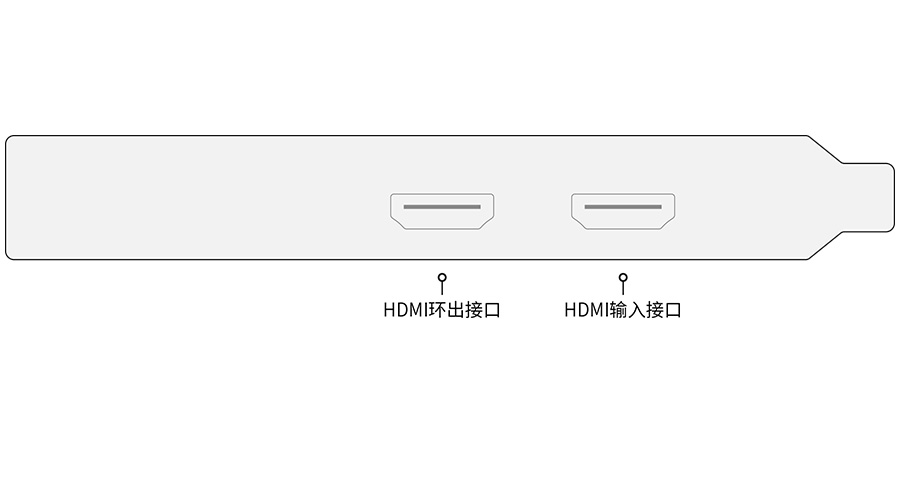

视频输入	2×HDMI
视频环出	2×HDMI ( Loop-Through )
显示视频格式	YV12, NV12, YUY2, RGB24, GB32
视频裸数据分辨率	1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps
录像格式	H.264 Main Profile (Hardware Compression)
分辨率	1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps
音频输入	2×HDMI Embedded Audio
音频输出	2×HDMI Embedded Audio ( Loop-Through )
音频格式	Stereo / 16-bit / 32000 ~ 48000Hz
SDK	Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
操作系统	Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit )
