接口主机接口：PCIe×4 ( Gen2 )

规格

型号	TC-5C0N8 HDMI
最大输入	1920×1200p@60/50fps in → 1920×1200p@60/50fps out 1920×1080p@60/50fps in → 1920×1080p@60/50fps out
录制模式	硬压缩，实时
尺寸	160.15×101.03 ( mm ) PCIe Full Height
主机接口	PCIe×4 ( Gen2 )

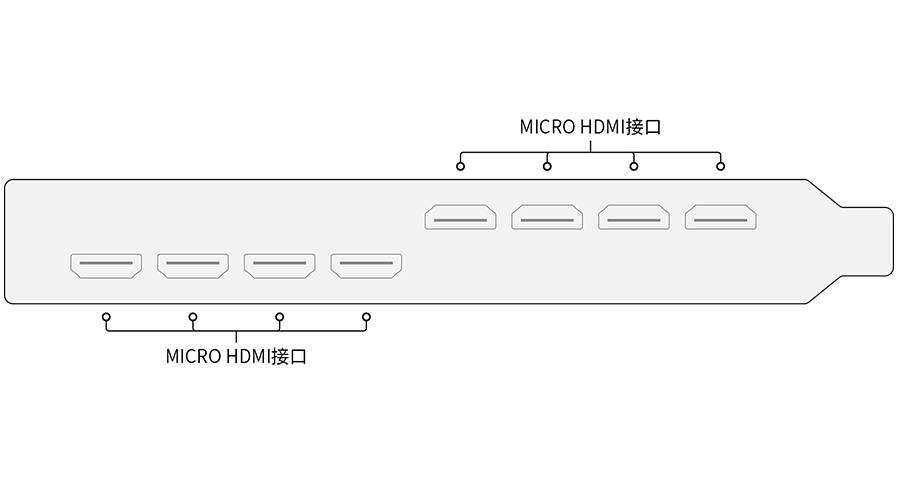

视频接口	8×HDMI
显示视频格式	YV12, NV12, YUY2, RGB24, RGB32
视频输入	1280×960p@60fps 1920×1200p@60/50fps 1920×1200p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps
压缩模式	H.264 ( Hardware Compression )
分辨率	1280×960p@60fps 1920×1200p@60/50fps 1920×1200p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps
音频输入	8×HDMI Embedded Audio
音频格式	Stereo / 16-bit / 32000 ~ 48000Hz
SDK	Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
支持操作系统	Windows XP / Vista / Windows 7 Windows 8 / Windows 8.1/ Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit )
